Front Runner

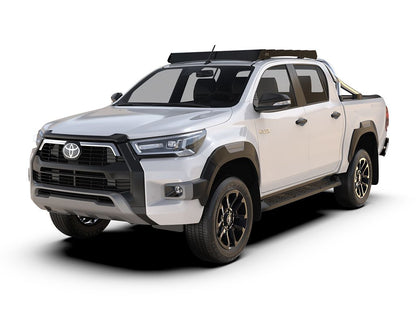

TOYOTA HILUX (2015-CURRENT) SLIMSPORT ROOF RACK KIT - BY FRONT RUNNER

TOYOTA HILUX (2015-CURRENT) SLIMSPORT ROOF RACK KIT - BY FRONT RUNNER

Regular price $689.00 USD
Regular price Sale price $689.00 USD
Sale Sold out
Shipping calculated at checkout.

A roof rack frees up space in the load bay and cab of your double-cab, allowing you to load more gear for your adventures. The sleek, low-profile Slimsport Roof Rack is form-fit to complement the aesthetic of your Toyota Hilux and is compatible with over 55 accessories so you can kit up for any adventure.

INFO:

  • This low-profile flat deck Slimsport rack has a load-carrying area of 1386mm (54.6") L x 1147mm (45.2") W.
  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
  • The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
  • Easily add on the Rack Accessory Mounting Bracket (RRAC182) for most Front Runner side mount accessories (sold separately).
  • The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
  • Need a lightbar? The optional lightbar fairing Toyota Hilux H48 DC (2022-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount (sold separately).
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack (RRAC213) is required for installation.
  • Note: Drilling required.
  • Note: Under Rack Tables are not compatible with the Slimsport rack kit range
  • Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

KSTH005T - Toyota Hilux (2015-Current) Slimsport Roof Rack Kit - by Front Runner

Consisting of:
1x KSTH002 - Toyota Hilux (2022-Curr) SlimSport Roof Rack Kit
1x RRAC244 - Toyota Hilux H48(2022-Curr)SsportRack Wind Fairing
1x RRAC971 - Protection Strip


Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel


Assembled Rack Kit Dimensions: 1386mm (54.6") L x 1147mm (45.2") W x 116mm (4.6") H


Approximate Installed Weight: 24.352537kg (53.69lbs)


The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.


To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.


Shipping Dimensions:
Width: 330mm (13")
Length: 1700mm (67")
Height: 160mm (06")


Shipping Weight:
Weight: 25kg (55lbs)
