DOMETIC CFX3 45 COOLER/FREEZER & CARGO/FRIDGE SLIDE - BY FRONT RUNNER
DOMETIC CFX3 45 COOLER/FREEZER & CARGO/FRIDGE SLIDE - BY FRONT RUNNER
Description
Description

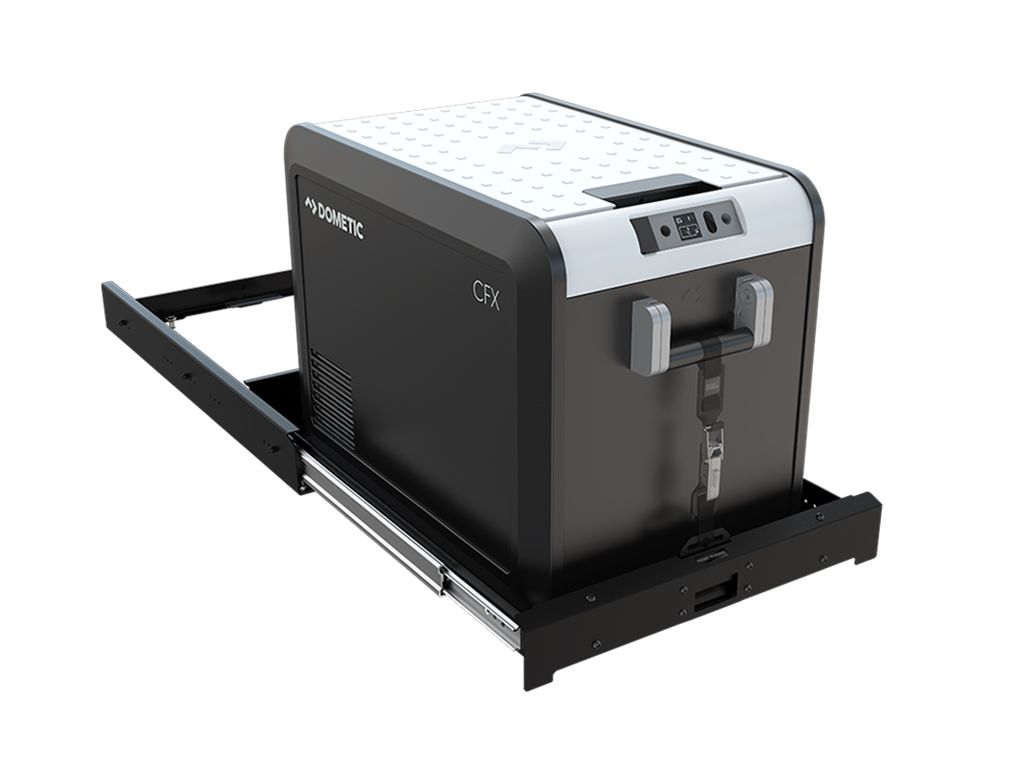

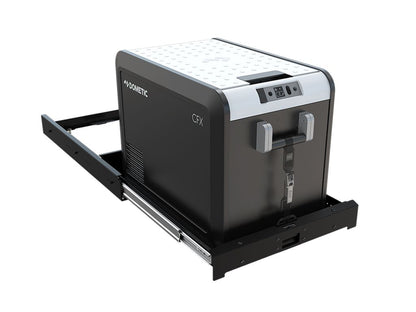

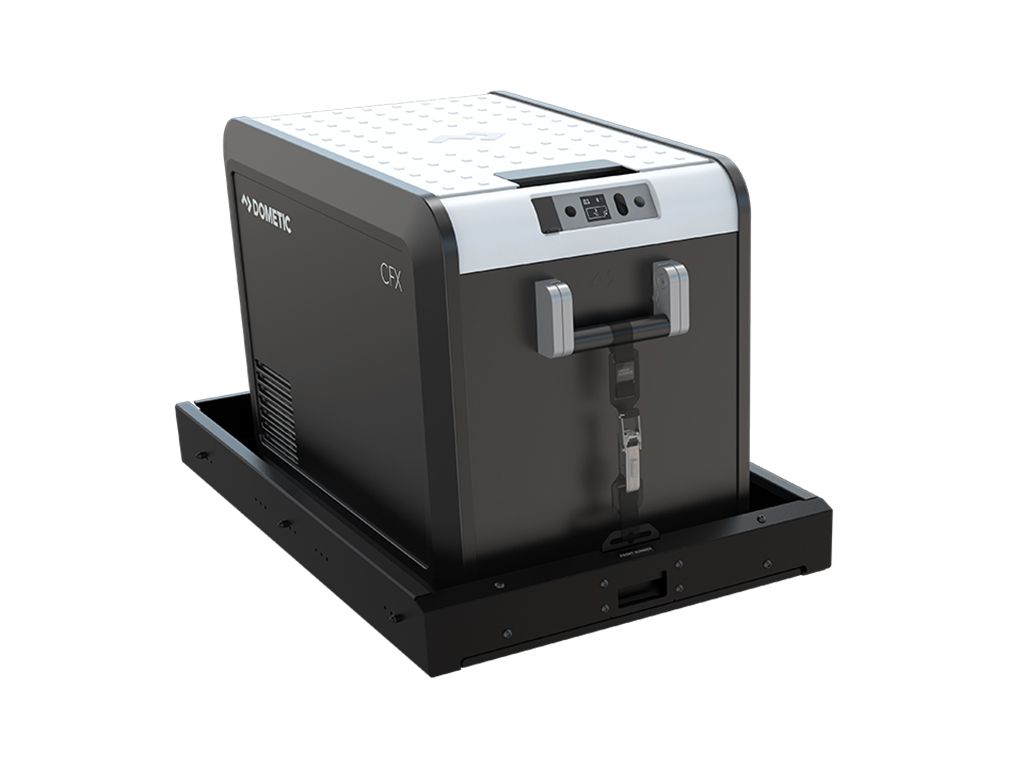

Chill all your favorite food and drinks and stay out longer on your adventures with this powered cooler and storage slide combo. This feature-rich Dometic CFX3 45’s 46-liter / 12.2 gallon load bay can be set as either a fridge or freezer and this kit features a solid-base slide with a hold-open feature. The tray extends to nearly 100% from the anchored base, offering easy access to your fridge as well other heavy, overland gear.
INFO:
- 46 liter / 12.2 gallon capacity cooler that can be set as either a fridge or freezer.
- Easy-to-read, high-resolution, color display and soft touch buttons enables seamless control and monitoring of cooler performance.
- USB port to charge your mobile devices or other gear.
- Wi-Fi/Bluetooth app to remotely control and monitor temperature from anywhere in your vehicle.
- Powerful VMSO3 compressor cooling technology efficiently refrigerates and deep-freezes to –22 °C/ -7.6 °F.
- Rugged construction with fender frame protected edges and aluminum handles.
- 3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries.
- Active Gasket Technology provides a superior seal to retain cool air and minimize power consumption.
- Features 100V or 240V AC mains and 12V or 24V DC connections.

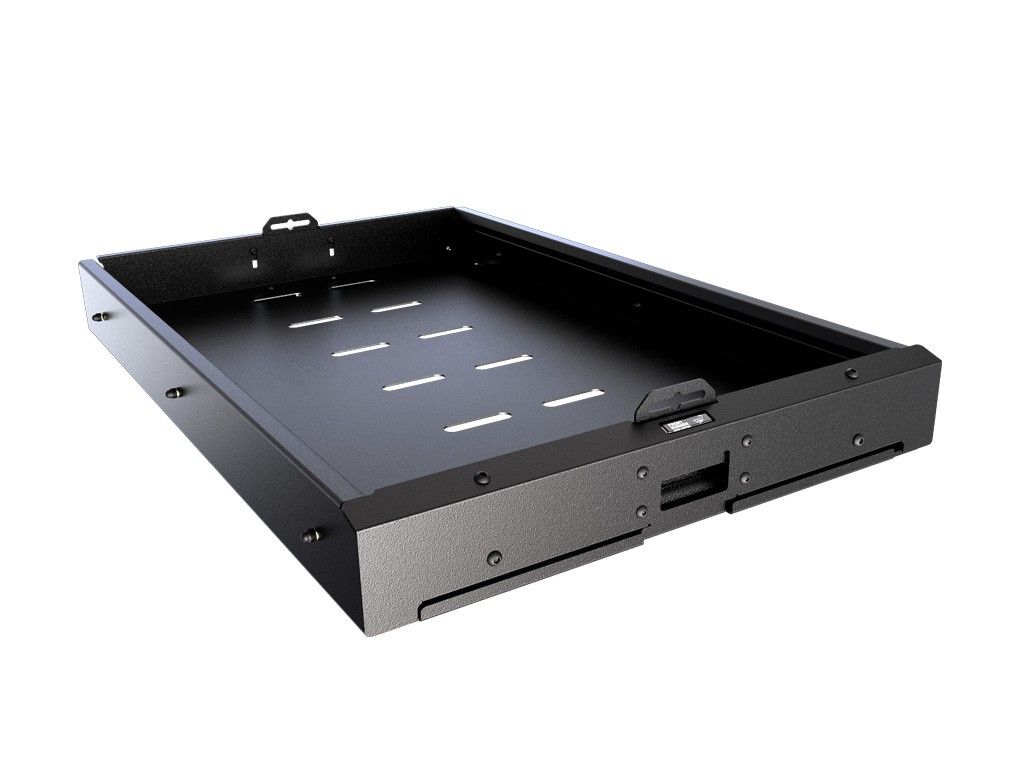

- A slide system makes accessing your Dometic CFX3 45 Cooler/Freezer or other heavy gear quick and simple while using minimal space.
- This slide is mountable to any flat surface, including Front Runner drawer systems and pick-up truck beds.
- Mounting holes are predrilled.
- High strength bearing drawer slides allows the tray to extend nearly 100% from the anchored base.
- Unique design keeps the slide rattle free when closed.
- A swivel latch securely locks the drawer in the closed position.
- A clip latch securely locks the drawer in the closed position.
- Features a hold open mechanism to prevent the slider from closing when the vehicle is parked on uneven surfaces.
- Finished in the same durable weather resistant black powder coating as the Front Runner Roof Rack.
- Can have many other uses, like carrying tools, boxes, or other adventure gear.
- Mounting hardware included for wood and metal surfaces.
SPECS:
Consists of:
1 x Cooler
1 x Connection cable for 12/24V connection
1 x Connection cable for 100-240V connection
2 x Removable wire baskets
1 x User Manual
1 x Cargo/Fridge Slide (FSLI005)
Cargo/Fridge Slide Product Dimensions:
Overall Dimensions
793mm (31.2") L x 535mm (21.1") W x 85mm (3.3") H
Closed Dimensions:
793mm (31.2") L x 533mm (21.0") W x 85mm (3.3") H
Opened Dimensions:
1529mm (60.2") L x 533mm (21.0") W x 85mm (3.3") H
Inner Dimensions:
734mm (29.0") L x 453mm (17.8") W x 64mm (2.5") H
Cargo/Fridge Slide Weight:
16.4kg (36.2lbs)
Cargo/Fridge Slide Maximum load capacity:
113Kg (250lbs)
Cooler Product Dimensions:
694mm (27.3") L x 398mm (15.7") W x 476mm (18.7") H
Cooler Weight:
18.7kg (41.2lbs)
Volume:
Gross volume: 46l (12.2gal)
Storage volume: 40l (10.6gal)
Special Notes:
Input voltage (DC) 12/24 V
Refrigerant, type R134a
Climate class (EN 62552) N/T
Energy Consumption 12VDC 1.03 Ah/h
Energy class EU (1060/2010/EC) A++
UK SKU: 9600025327
EU SKU: 9600025326
USA SKU: 9600024618
INSTALL:
- Language: EN
- Filename: O_FRID098_EMEA16.pdf
- Filesize: 30.06 M
- Language: EN
- Filename: O_FRID098_APAC(en).pdf
- Filesize: 4.44 M
- Language: EN
- Filename: O_FRID098_AMER(en-fr-es).pdf
- Filesize: 7.74 M
- Language: EN
- Filename: F_FSLI005.pdf
- Filesize: 296.89 K
*A PDF viewer is required to view the fitting instructions.
