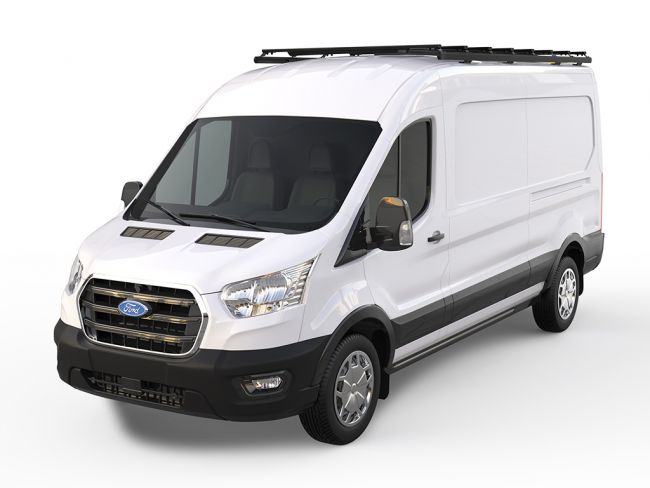

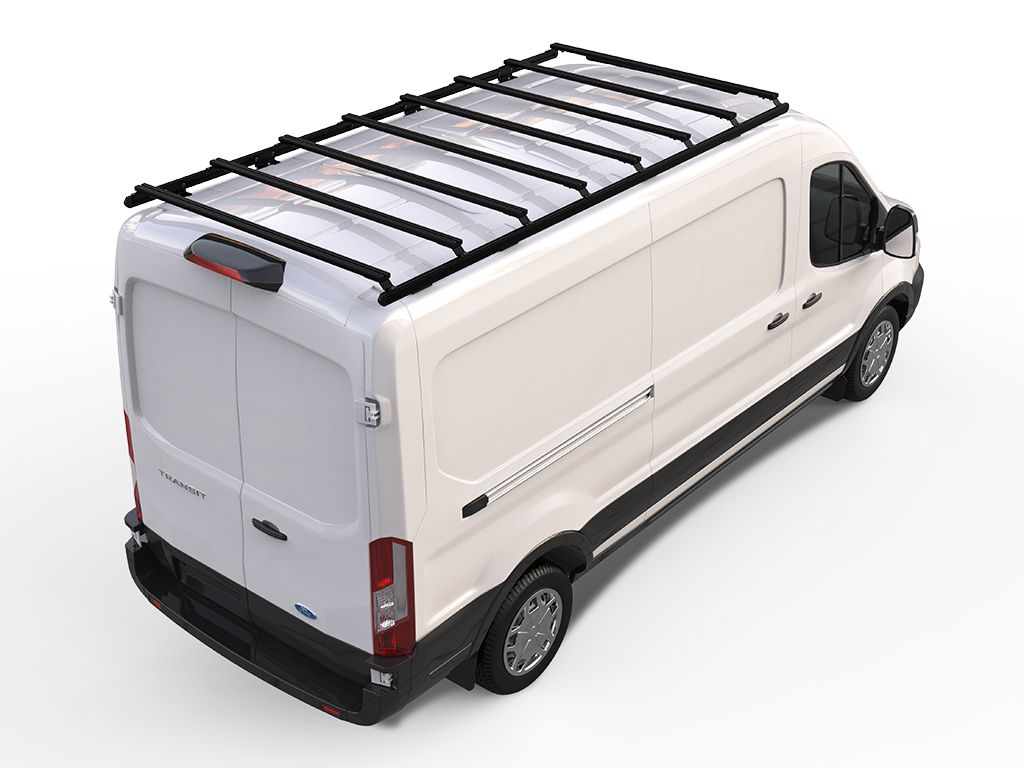

FORD TRANSIT (L3H2/136" WB/MEDIUM ROOF) (2013-CURRENT) SLIMPRO VAN RACK KIT - BY FRONT RUNNER
FORD TRANSIT (L3H2/136" WB/MEDIUM ROOF) (2013-CURRENT) SLIMPRO VAN RACK KIT - BY FRONT RUNNER
Description
Description
Unlock your van’s storage potential with this highly versatile, rugged roof rack kit for Ford Transit vans. Long distance van-life mission, weekend trip or hauling equipment such as ladders and pipes, the low profile rack is designed to support large loads. It features an adjustable slat system to accommodate just about any type of roof-mounted equipment such as air conditioning units, skylights and air vents. The rack's expansive load-carrying area was designed to carry gear and mount Front Runner accessories in a huge range of configurations.
Configure your Slimpro Van Rack to suit any adventure by adding the RACK ACCESSORIES or explore them later when a new adventure calls.
INFO:
- Compatible with Ford Transit L3/H2 / 136"WB medium roof vans with a vehicle length of 5981mm / 235.5".
- Load-carrying area: 2974mm (117.1") x 1470mm (57.9").

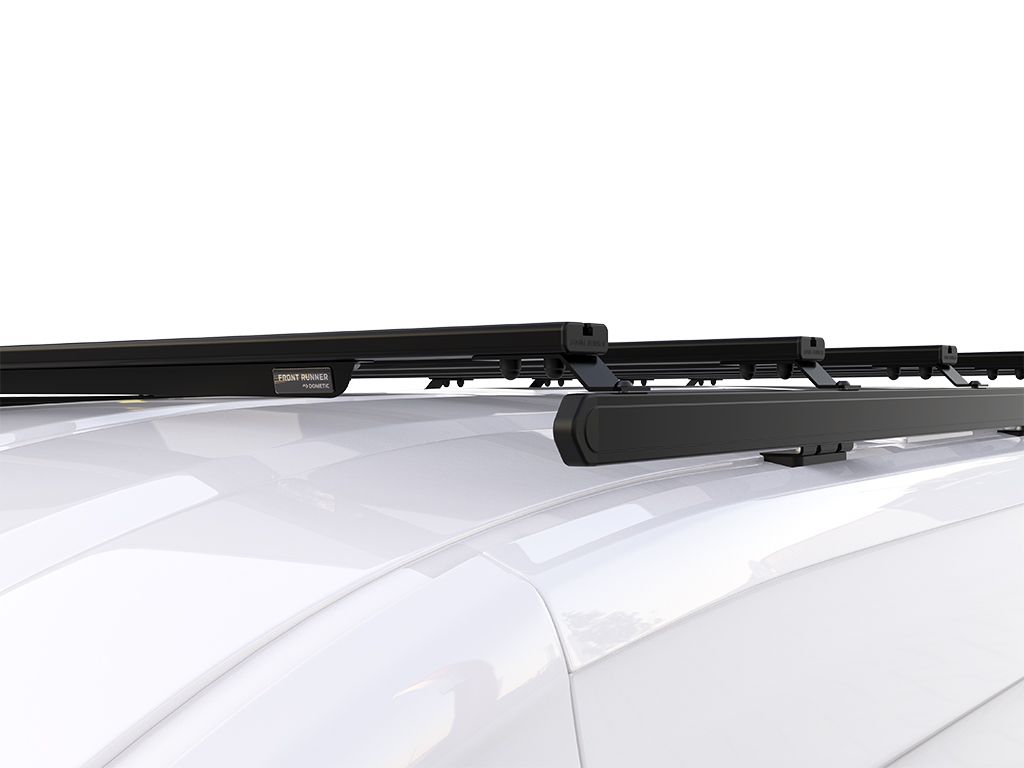

- Eight (8) Mounting Feet secure into van's existing factory mounting points.
- Compatible with most Front Runner accessories.

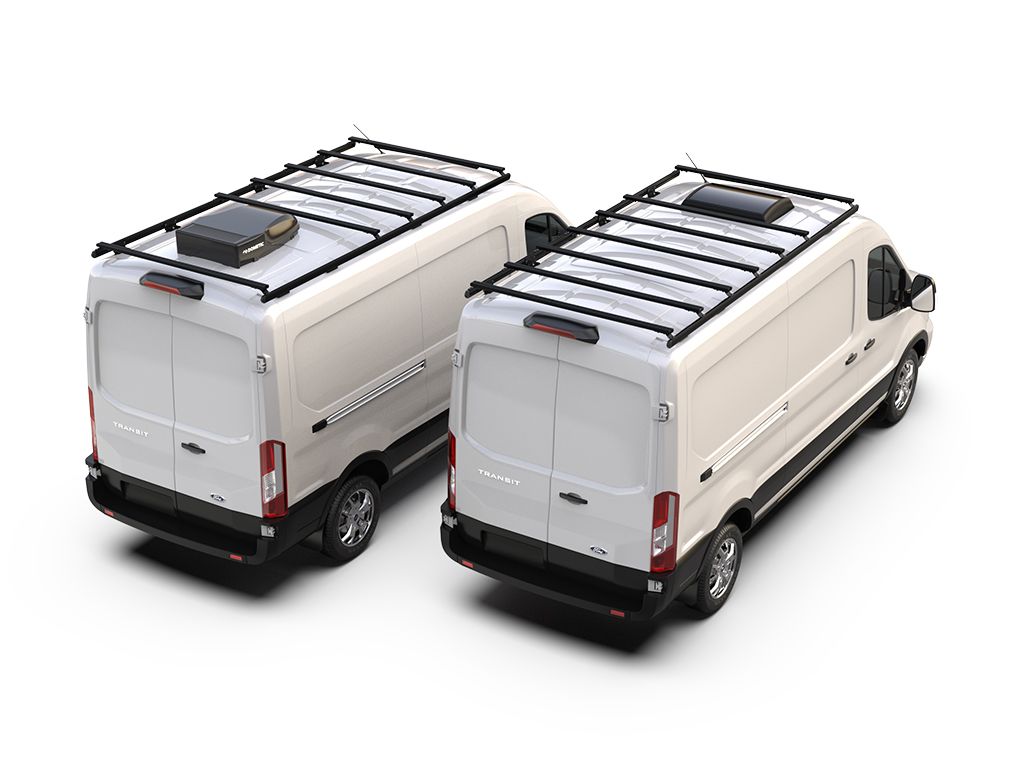

- Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
- Fitment guide and all mounting hardware are included. No drilling or modification required.
- All Front Runner racks are backed by a limited lifetime warranty.*
SPECS:
KVFT003T - Ford Transit (L3H2/136" WB/Medium Roof) (2013-Current) Slimpro Van Rack Kit - by Front Runner
Consisting of:
4x FAVF003 - Ford Transit Van Rack Foot Set
1x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps

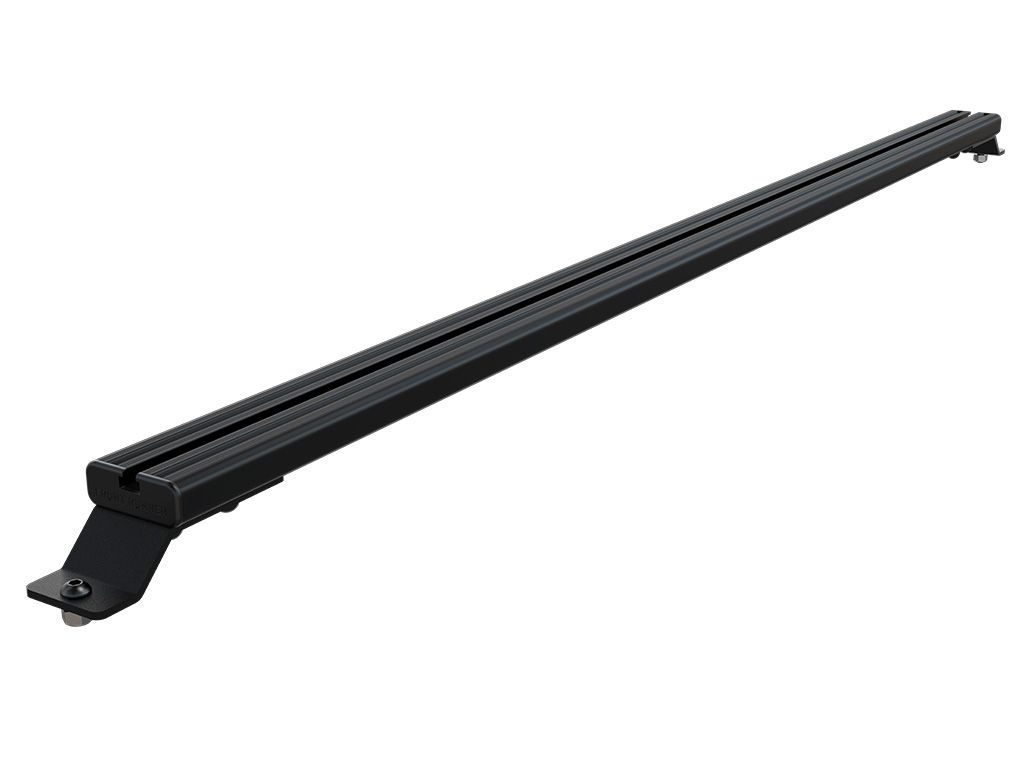

4x RRNS1425 - Narrow Slat / 1425mm (Pair)

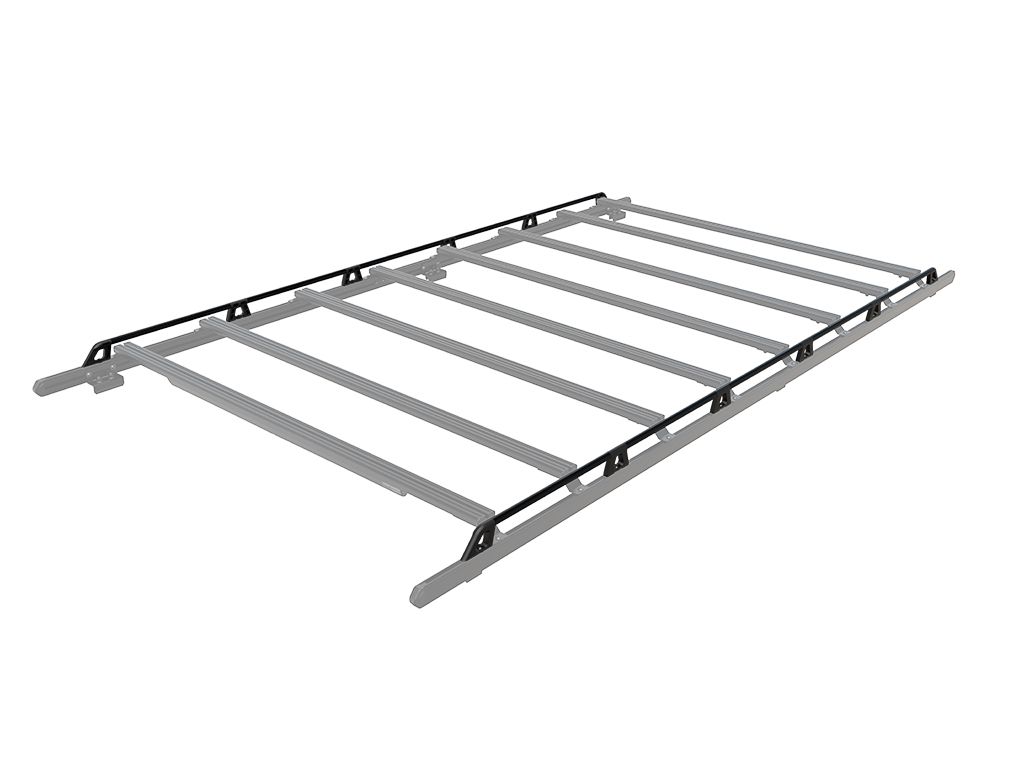

1x SPVT002 - Van Rack Side Profile / 1358mm
1x SPVT003 - Van Rack Side Profile / 1560mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

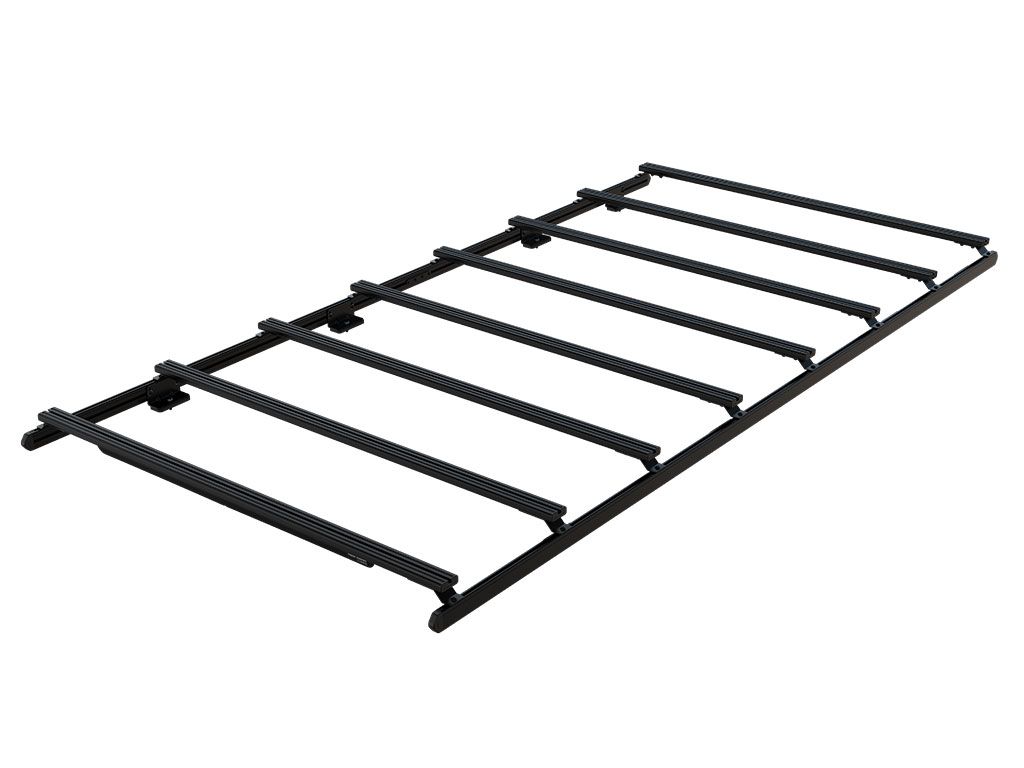

Assembled Rack Kit Dimensions:
2974mm (117.1") L x 1470mm (57.9") W x 123mm (4.8") H
Approximate Installed Weight: 34.45kg (75.95lbs)
Ford Transit Van Rack Kit heights are 125mm from the bottom of the roof ditch to the top of the slat. (Z brackets can not be inverted) all measurements are taken from bottom of roof ditch to top of the rack slat.
The slat T slots and side profiles take standard M8 hex bolts top and bottom.
Shipping Dimensions:
Width: 300mm (12")
Length: 1805mm (71")
Height: 195mm (8")
Shipping Weight:
Weight: 37.35kg (82lbs)
